Triggers and schedules

A run starts in one of five ways: Run now on the job page, the job’s schedule, its webhook, the REST API, or Retry on an earlier run (Reading a run). Every trigger passes the job’s overlap policy, which sets what happens while another of its runs is active.

Every trigger passes the same overlap policy. Past it, every run waits in the queue until a replica has a free slot.

Run now

Run now in the job header opens a dialog whose two optional fields apply to this one run.

Extra instructions takes up to 10,000 characters of guidance, such as “Only look at pull requests opened this week”. The agent reads it after the job’s own instruction, and a graduated job’s main script ignores it.

Input takes JSON, which the run reads from /ump/input.json. For a job that declares inputs, the field starts with a template of them, and for any other job Add input JSON opens it.

Schedules

Turn on Run on a schedule in the Schedule card of the job’s Settings tab. The switch starts you off with 0 9 * * * in your browser’s time zone.

Cron expression takes five fields (minute, hour, day of month, month, day of week) or a descriptor such as @daily or @hourly. Cron expressions are easier to write than to read, so the Presets menu covers the common ones and the card repeats your schedule in plain words, such as “Weekdays at 08:00”. There is no seconds field, so the tightest schedule is once a minute.

Timezone takes an IANA name such as Europe/Berlin, and a schedule without one runs in UTC.

If Umpteenth was down when an occurrence came due, the job runs once as soon as Umpteenth is back, however many occurrences it missed.

Webhooks

To start a run from another system, send an HTTP POST to the job’s webhook. The request body becomes the run’s input.

1. Open the job’s Settings tab and find the Webhook card. A new job shows No token, and its webhook refuses every call until you create one.

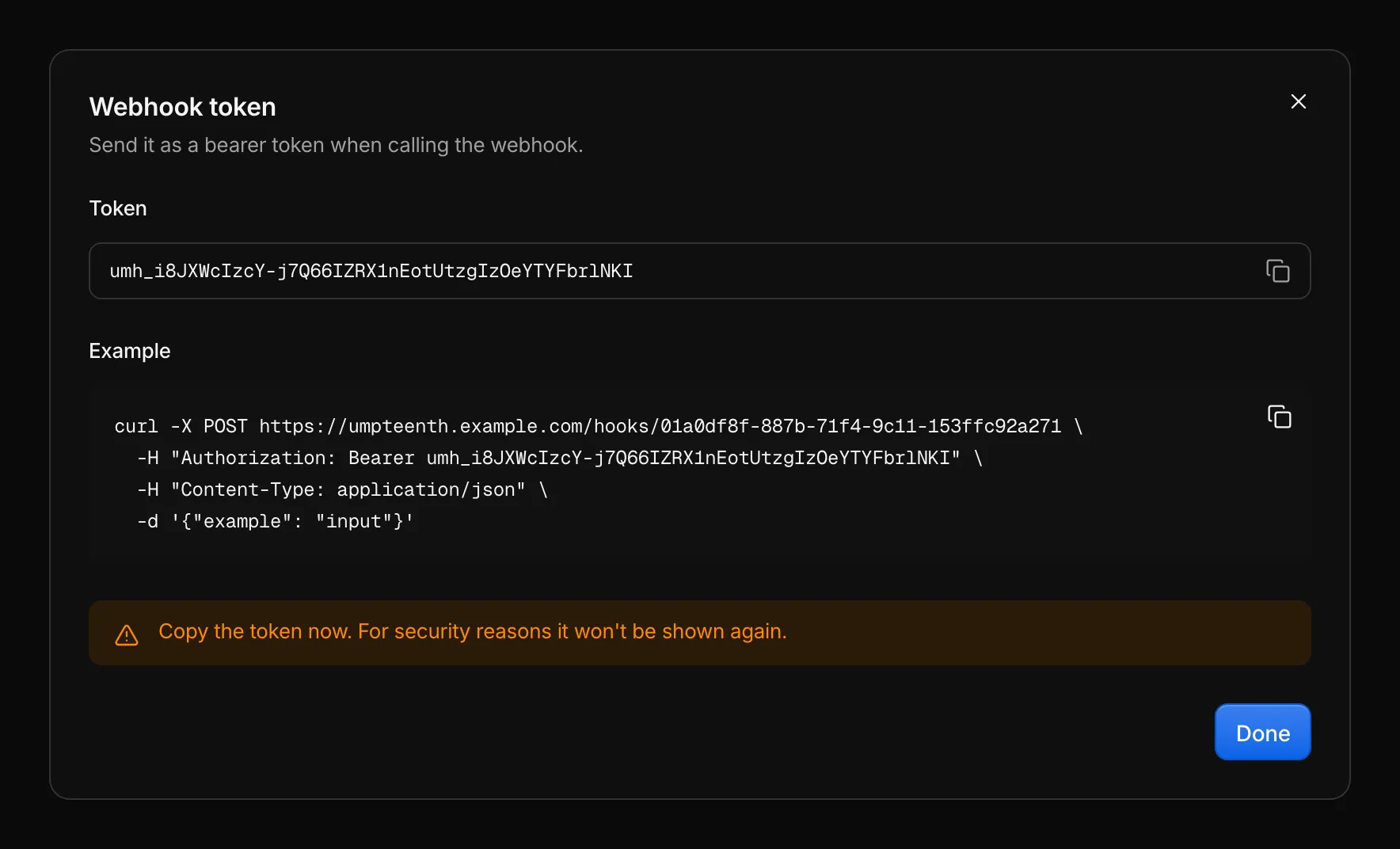

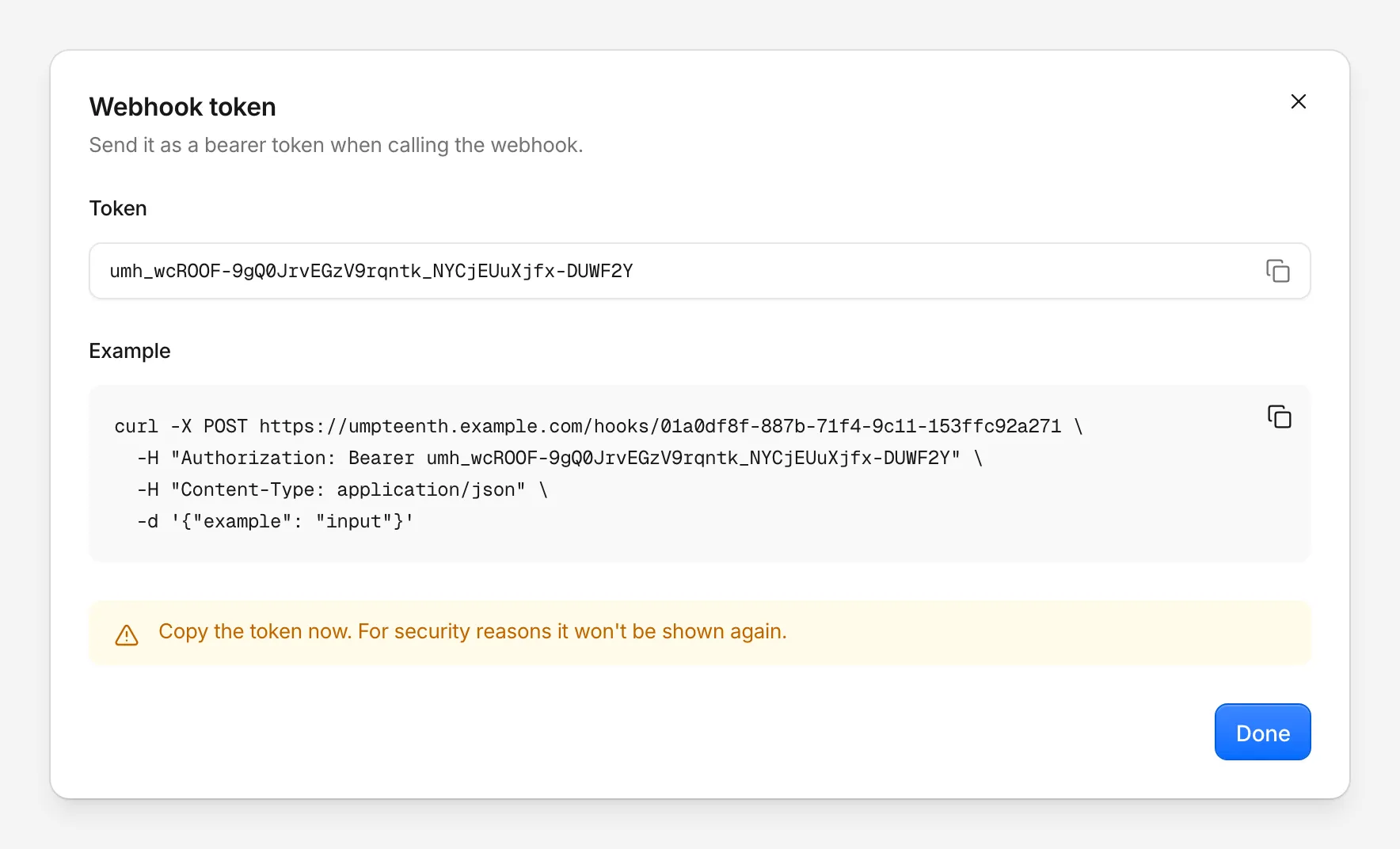

2. Click Generate token. The Webhook token dialog shows the token, which starts with umh_, and an example call. Copy the token now, since Umpteenth shows it only this once.

3. Call the URL from the card, https://umpteenth.example.com/hooks/<job ID>, with the token as a bearer token.

curl -X POST "https://umpteenth.example.com/hooks/$JOB_ID" \
  -H "Authorization: Bearer $WEBHOOK_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"tag": "v2.4.0"}'

The card builds the URL from the address you opened Umpteenth at. A caller outside your network, such as GitHub or an online shop, needs your public HTTPS address, which a reverse proxy provides.

The body is optional and takes up to 1 MiB. Umpteenth writes a JSON body to /ump/input.json as it is and wraps anything else in a JSON string, and an empty body gives {}. The webhook has no field for extra instructions, so anything a run needs goes into the body.

A successful call answers {"runId": "…", "status": "queued"}, with "skipped" as the status when the overlap policy skipped the run. A wrong or rotated token gets 401, and a paused job answers 409. Umpteenth limits each job’s webhook to a sustained 60 calls a minute and answers 429 beyond that, with the seconds to wait in the Retry-After header.

Rotate token replaces the token, and the old one stops working at once, so update every caller right after you rotate.

From GitHub Actions

GitHub’s repository webhooks can’t send an Authorization header, so call the webhook from a workflow step, with the URL stored as a repository variable and the token as a repository secret:

.github/workflows/release-notes.yml

on:
  release:
    types: [published]

jobs:
  release-notes:
    runs-on: ubuntu-latest
    steps:
      - name: Start the release notes job
        run: |
          curl -fsS -X POST "${{ vars.RELEASE_NOTES_WEBHOOK_URL }}" \
            -H "Authorization: Bearer ${{ secrets.RELEASE_NOTES_WEBHOOK_TOKEN }}" \
            -H "Content-Type: application/json" \
            -d '{"repository": "${{ github.repository }}", "tag": "${{ github.event.release.tag_name }}"}'

The API

Scripts and other services start runs with POST /api/jobs/<job ID>/runs and an API token from Settings → API tokens. The body takes the same two optional fields as Run now, input and instructions, and the answer has the webhook’s shape (REST API).

Overlapping runs

The When runs overlap setting in the Schedule card sets what happens to a trigger that arrives while another run of the job is active:

• Skip, the default, records the new run as Skipped.
• Queue holds the new run as Queued until the active run ends, whatever its outcome. Queued runs start one at a time, in the order of their triggers.
• Parallel starts every run right away. Parallel runs share the job’s state, so they can overwrite each other’s values.

Apart from the policy, each Umpteenth replica executes at most runs.max_concurrent runs at once, 3 by default (Configuration). Runs beyond that wait as Queued until a slot frees up, and their timeout starts only then.
